Equipment List and Capabilities

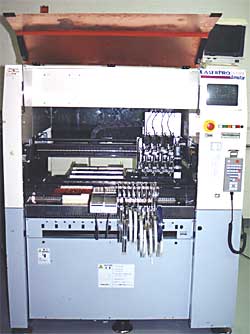

Amistar 5530 Laser Pro 16" x 18" Placement area Four placement heads with vision/laser alignment Component Range: 0402 to 2.13" (any) Fine Pitch: 12 mil Tape, Vibratory and Matrix Feeders.

16" x 18" Placement area Four placement heads for up to 13,500 parts per hour Component Range: 0402 to 1.4" (any) Fine Pitch: 20 mil Tape, Vibratory and Matrix Feeders.

22" x 18" Placement area Two Placement Heads with Vision Component Range: 0402 to 1.4" (any) Fine Pitch: 12 mil Tape, Vibratory and Matrix Feeders.

Place-mat 460 (2) Pick and Place Systems, IBM Capatible

Frames Sizes: Up to 25" x 23" Print Area: 17" x 17"

Infra-red re-flow oven Vitronics Central Controlled Software IBM Compatible Computer

Forty Tape and Reel Feeder Stations Optical Correction System (PCS) Lead Protrusion Inspection Systems with Repair Function 18" x 18" Insertion Area

Automatic Dip Inserter with 94 Feeder Stations 18" x 18" Insertion Area

Axial Component Inserter

Frames Sizes: Up to 29" x 29" Print Area: 20" x 19"

Cable / Wire Harness Tester

Future Model Soldering Station

Weller Touch-up Soldering Station

Wire Range: 30 – 14 AWG (0,05 – 3mm2) wire dependent
Max. Wire OD: 0.25 inch (6.35mm)
Stripping Length: 0.01 to 0.99 inch (0,25 – 25,4mm) full or partial stripping
Wire Length: .060 – 3,937 Inch (1.4 – 9,999mm)
Wire Length Accuracy (In Standard Length Mode):
Standard Deviation less than 0.2% of total wire length(wire dependent)
Max Production Rate @ 10” (250mm) with 1/4” (6.4mm) stripping: 3250/hr. (Application Dependent)

The Komax Kappa 210 automatic cut and strip machine gives quick job change-over, with high levels of flexibility and programmable operation.Up to 150 jobs can be programmed into the machine's memory, each one containing all job parameters such as cut length, strip length, blade settings, feed and strip speeds, and even roller pressure and roller gap. Theses give a minimal job changeover time, when combined with click-in guides and easily changed blades.
